| Price | $0.50 – $10.00 / Piece |
|---|---|
| Tooling Cost | [ Tooling fees may be needed for new design ] |
| Price Range | Depend on the qty and packaging, materials and specification requirements, etc. |
| Payment Term | Payment>500USD, 30% T/T in advance, 70% balance before shipment. Payment<=500USD, 100% in advance. |
| Lead Time | Generally 1-3 days if the goods are in stock. Normally 7-15 days for customed drawing. Negotiable for Busy Season or Large Qty. |
| Packaging | Inner packing – Special protective packing for optical products. Outer packing – Carton, anti-shock material and bubble wrap. |
| MOQ | ≧100pcs for OEM. 5 to 20pcs also welcome for sample order. |
| Material | Optical Glass |
| Surface Accuracy | <λ/5@633nm |
| Surface Quality | <60/40 scratch and dig |
| Centration | ≤1 arcmin |
| Focal Length Tolerance | <±1% |
| Diameter Tolerance | <+0.00/-0.10mm |
| Thickness Tolerance | <±0.1 |
| Clear Aperture | ≥90% |
| Coating | AR / BBAR |
| Diameter Range | 5~260mm |

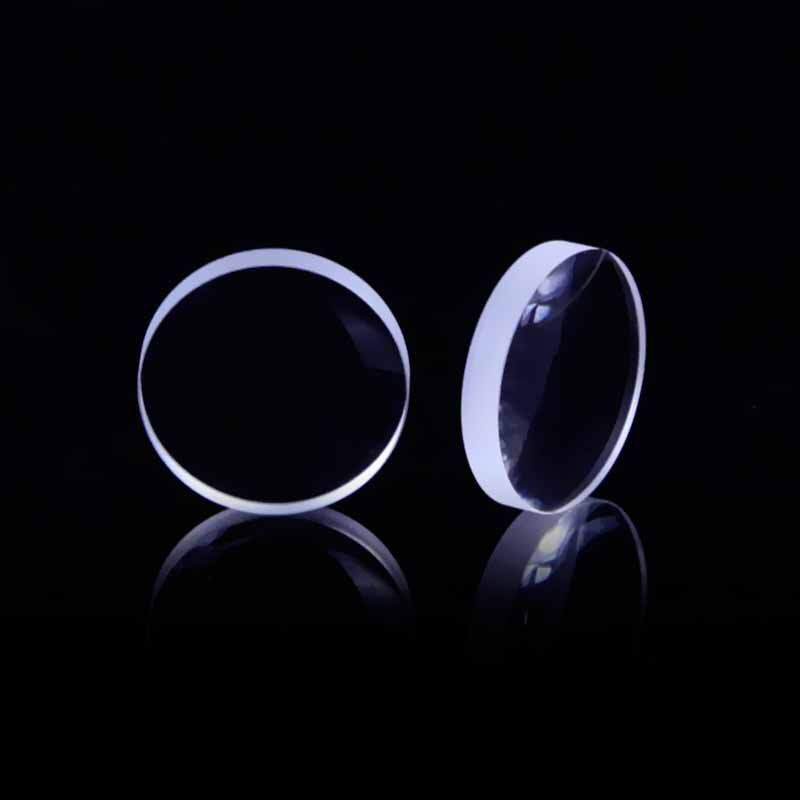

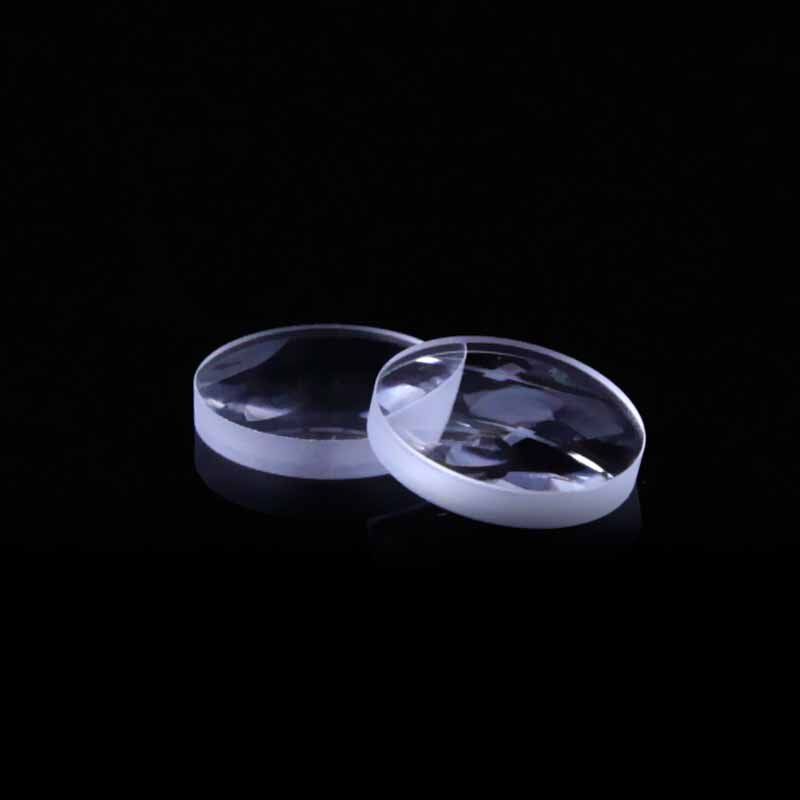

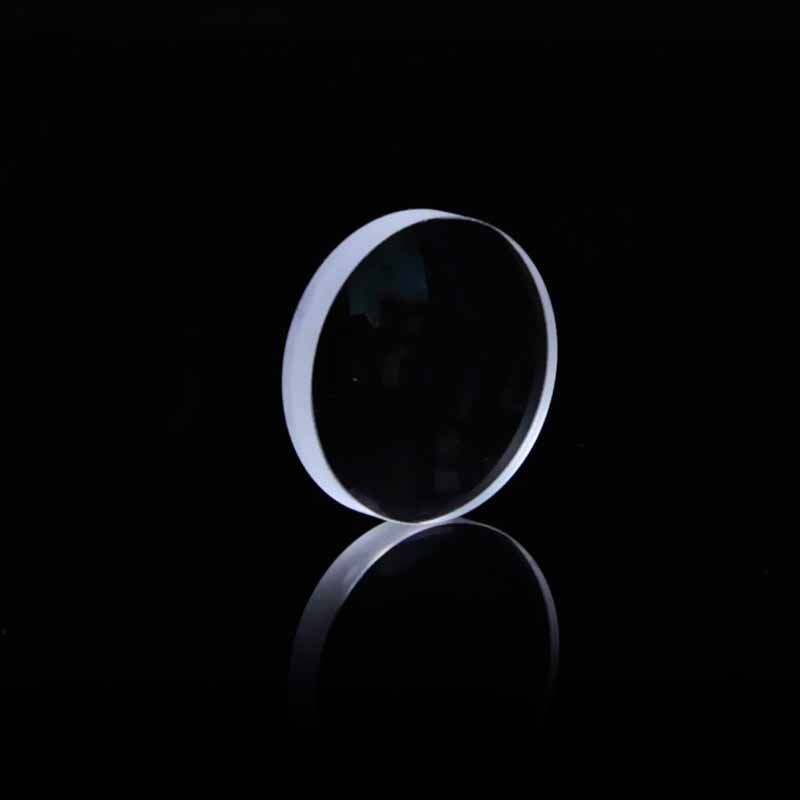

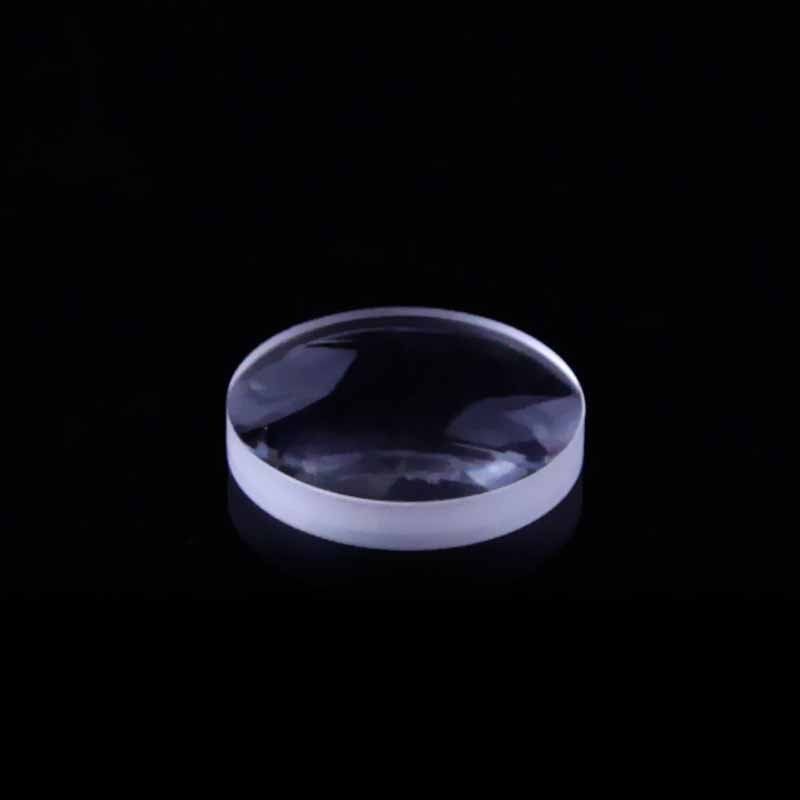

Plano-convex lenses are used for focusing, beam expansion, and imaging under general requirements. Plano-convex lenses are widely used in display systems, objective lens systems, imaging optical systems, and laser optical systems.
20 years of experience in this field with good reputation and trade records.
