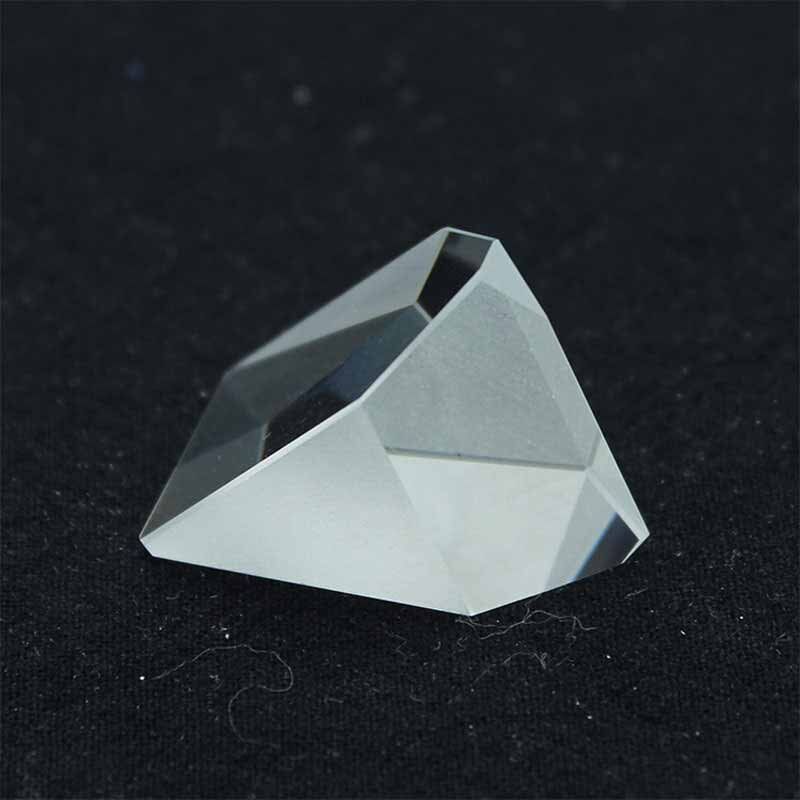

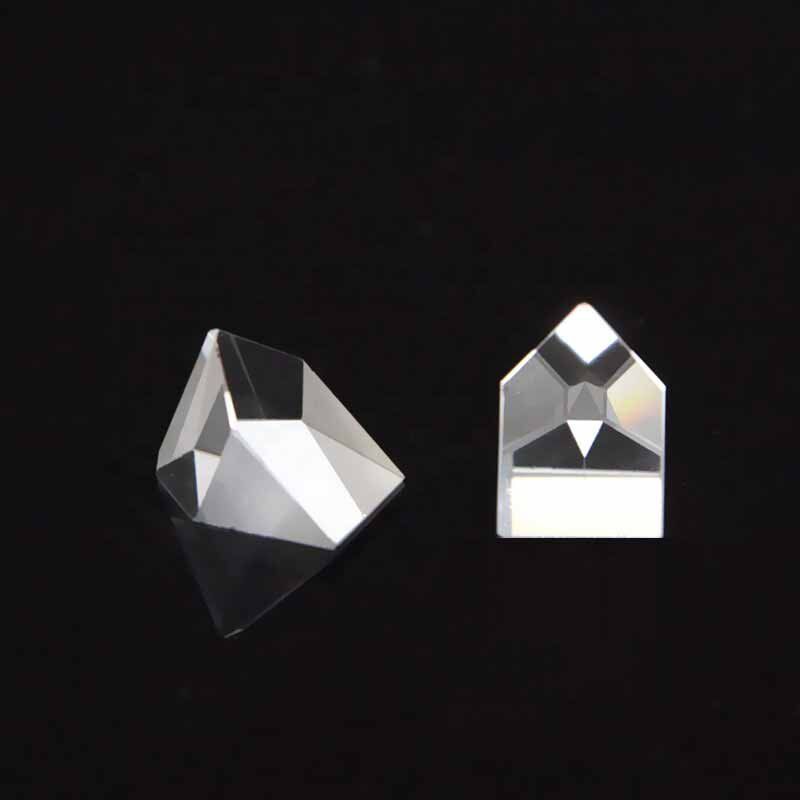

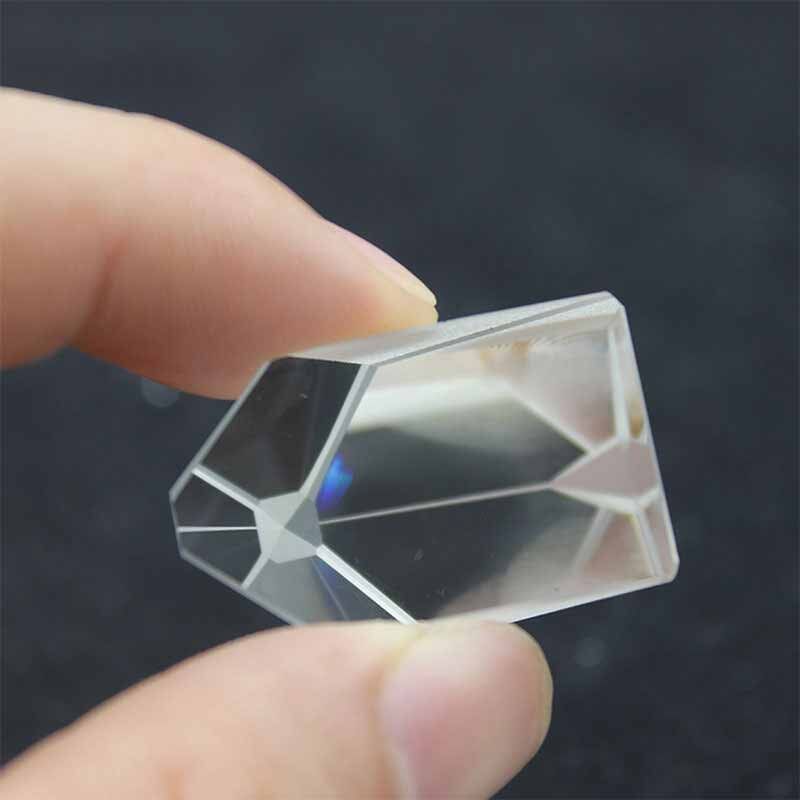

Optical Roof Prism
Optical Roof Prism
其他信息
| Price | $0.50 – $10.00 / Piece |
|---|---|
| Tooling Cost | [ Tooling fees may be needed for new design ] |
| Price Range | Depend on the qty and packaging, materials and specification requirements, etc. |
| Payment Term | Payment>500USD, 30% T/T in advance, 70% balance before shipment. Payment<=500USD, 100% in advance. |
| Lead Time | Generally 1-3 days if the goods are in stock. Normally 7-15 days for customed drawing. Negotiable for Busy Season or Large Qty. |
| Packaging | Inner packing – Special protective packing for optical products. Outer packing – Carton, anti-shock material and bubble wrap. |
| MOQ | ≧100pcs for OEM. 5 to 20pcs also welcome for sample order. |
Product Details
| Product Name | roof prisms |
| Material | optical glass |
| Size tolerance | ±0.2mm |
| Clear Aperture | ≥90% |
| Angle tolerance | +/- 2 arc seconds |
| Surface Quality | 60/40 |
| Surface Flatness | λ/4 |
| Bevel | Protective bevel as needed |
| Coating | Upon customer request |
optical glass roof prism is used to redirect light at a designated angle. Optical Prisms are ideal for ray deviation, or for adjusting the orientation of an image. An Optical Prism’s design determines how light interacts with it. When light enters an Optical Prism, it either reflects off an individual surface or several surfaces before exiting or is refracted as it travels through the substrate.
