| Price | $0.50 – $10.00 / Piece |
|---|---|
| Tooling Cost | [ Tooling fees may be needed for new design ] |
| Price Range | Depend on the qty and packaging, materials and specification requirements, etc. |
| Payment Term | Payment>500USD, 30% T/T in advance, 70% balance before shipment. Payment<=500USD, 100% in advance. |
| Lead Time | Generally 1-3 days if the goods are in stock. Normally 7-15 days for customed drawing. Negotiable for Busy Season or Large Qty. |
| Packaging | Inner packing – Special protective packing for optical products. Outer packing – Carton, anti-shock material and bubble wrap. |
| MOQ | ≧100pcs for OEM. 5 to 20pcs also welcome for sample order. |
| Material | H-K9L/UV Fused Silica or upon request |
| Angle Tolerance | ±5’ |
| Dimension Tolerance | 0/-0.1 |
| Surface Accuracy | λ/4 |
| Surface Quality | 60/40 (S-D) |
| Clear Aperture | ˃90% |
| Bevelling | 0.2±45° |
| Coating | AR/BBAR |
| Paint | GT-7 or upon request |

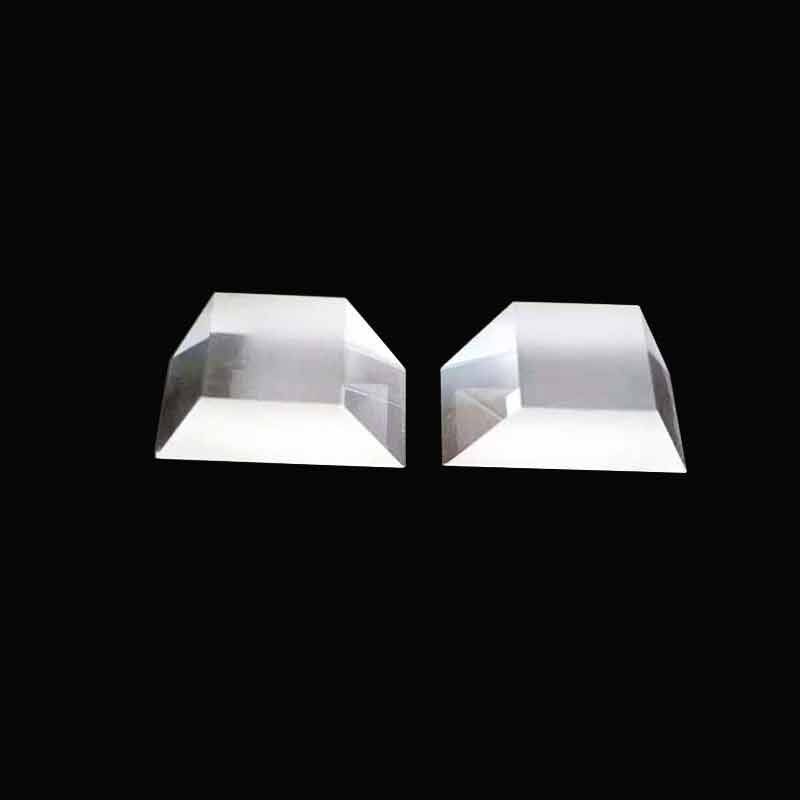

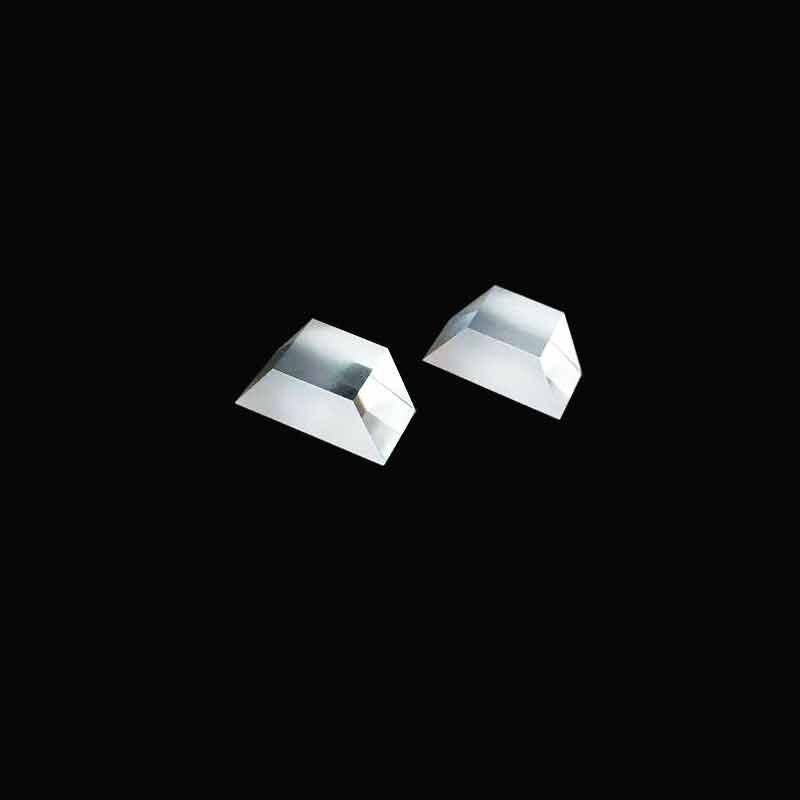

Dove Prism is ideal for image rotation. Dove prisms create an image inversion in a beam input parallel to the base.
