| Price | $0.50 – $10.00 / Piece |
|---|---|
| Tooling Cost | [ Tooling fees may be needed for new design ] |
| Price Range | Depend on the qty and packaging, materials and specification requirements, etc. |
| Payment Term | Payment>500USD, 30% T/T in advance, 70% balance before shipment. Payment<=500USD, 100% in advance. |
| Lead Time | Generally 1-3 days if the goods are in stock. Normally 7-15 days for customed drawing. Negotiable for Busy Season or Large Qty. |
| Packaging | Inner packing – Special protective packing for optical products. Outer packing – Carton, anti-shock material and bubble wrap. |
| MOQ | ≧100pcs for OEM. 5 to 20pcs also welcome for sample order. |
| Material | BK7,UV Fused Silica or upon request |
| Design Wavelength | BK7: 632.8nm, n=1.515@632.8nm;
UVFS: 355nm, n=1.476@355nm; |
| Dimension Tolerance | 0/-0.1mm |
| Thickness | 3mm on the thinnest edge |
| Wedge Angle Tolerance | <3arc minutes |
| Surface Quality | 60/40 Scratch/Dig |
| Surface Accuracy | λ/4@632.8nm |
| Deviation Angle | From 1 deg to 10 deg |
| Coating | AR/BBAR OF INPUT SURFACE |

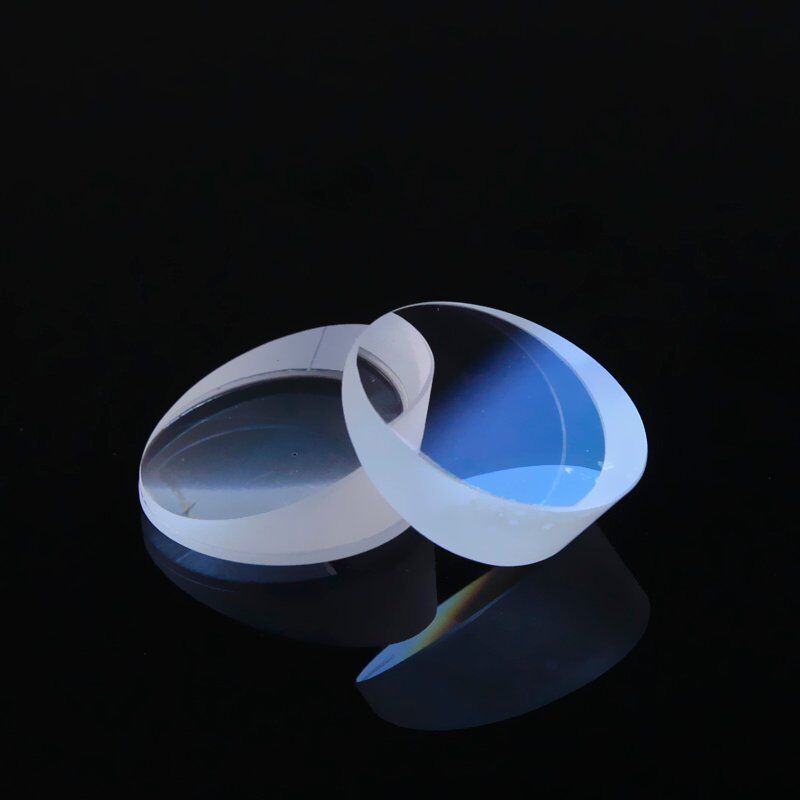

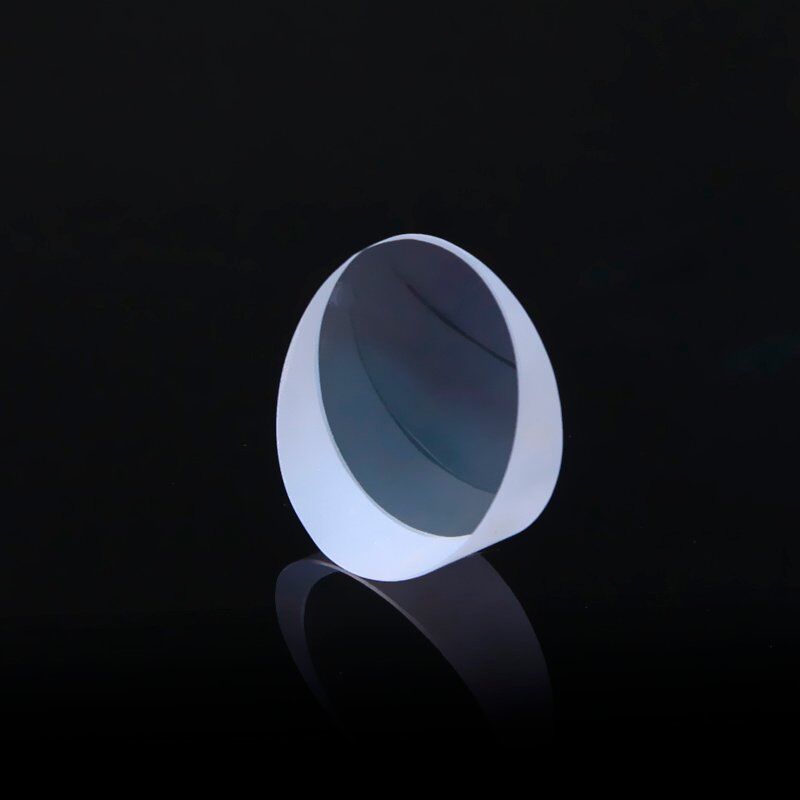

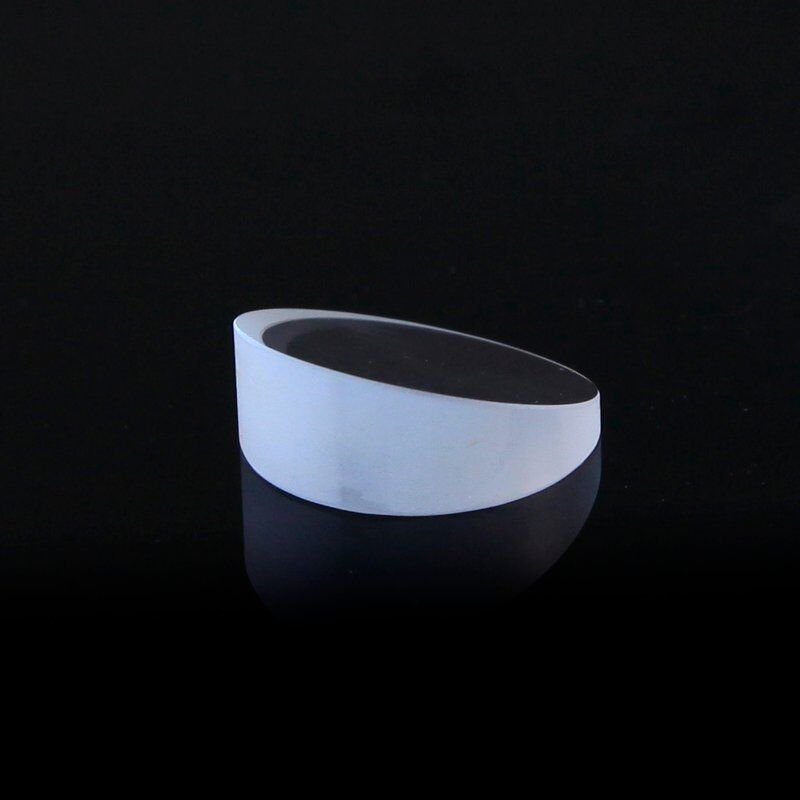

An optical wedge is a component that deflects light at a small angle in an optical system. Usually, two wedges are used in pairs. Rotating each wedge can make the outgoing light in any direction within a pyramid with the incident light as the axis.
