| Price | $0.50 – $10.00 / Piece |
|---|---|
| Tooling Cost | [ Tooling fees may be needed for new design ] |
| Price Range | Depend on the qty and packaging, materials and specification requirements, etc. |
| Payment Term | Payment>500USD, 30% T/T in advance, 70% balance before shipment. Payment<=500USD, 100% in advance. |
| Lead Time | Generally 1-3 days if the goods are in stock. Normally 7-15 days for customed drawing. Negotiable for Busy Season or Large Qty. |
| Packaging | Inner packing – Special protective packing for optical products. Outer packing – Carton, anti-shock material and bubble wrap. |
| MOQ | ≧100pcs for OEM. 5 to 20pcs also welcome for sample order. |
| Material | H-K9L or upon request |
| Angle Tolerance | 90°±3’ , 180°±5’ |
| Dimension Tolerance | 0/-0.1 |
| Surface Accuracy | λ/4 |
| Surface Quality | 60/40 (S-D) |
| Clear Aperture | ˃90% |
| Bevelling | 0.2±45° |
| Coating | AR/BBAR |
| Paint | GT-7 or upon request |

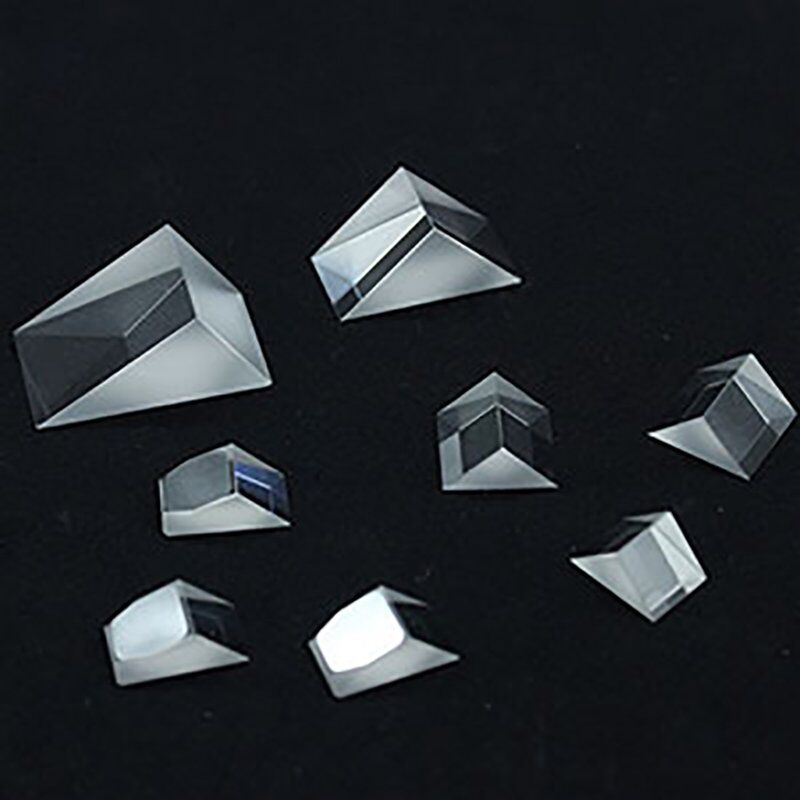

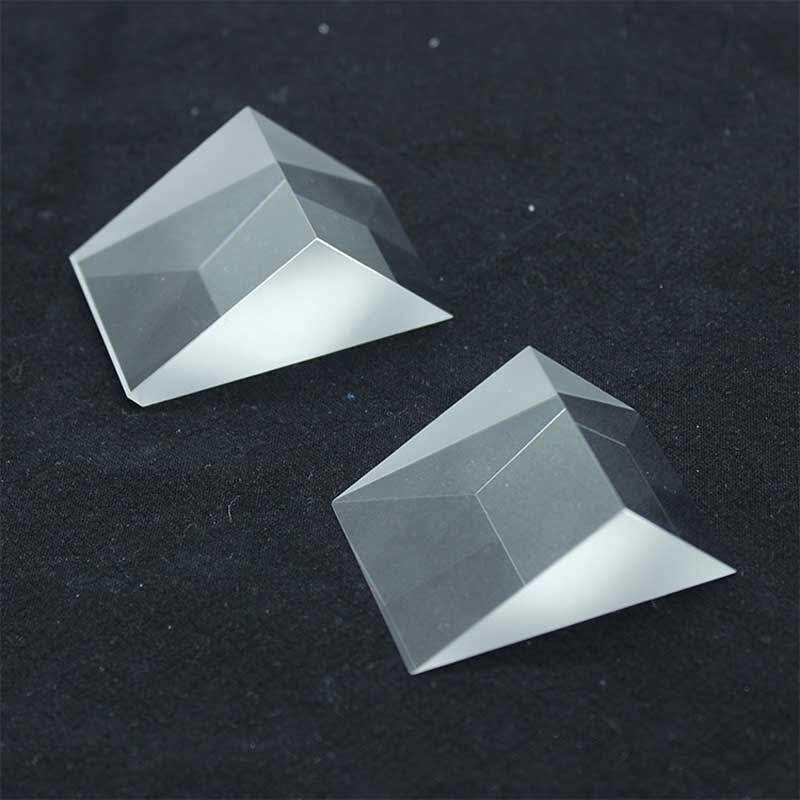

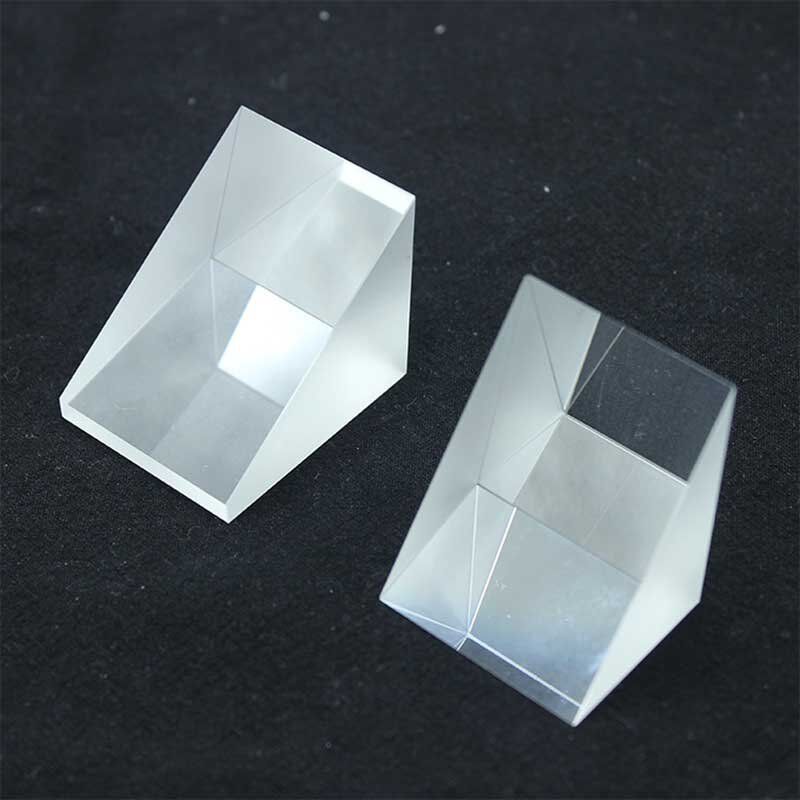

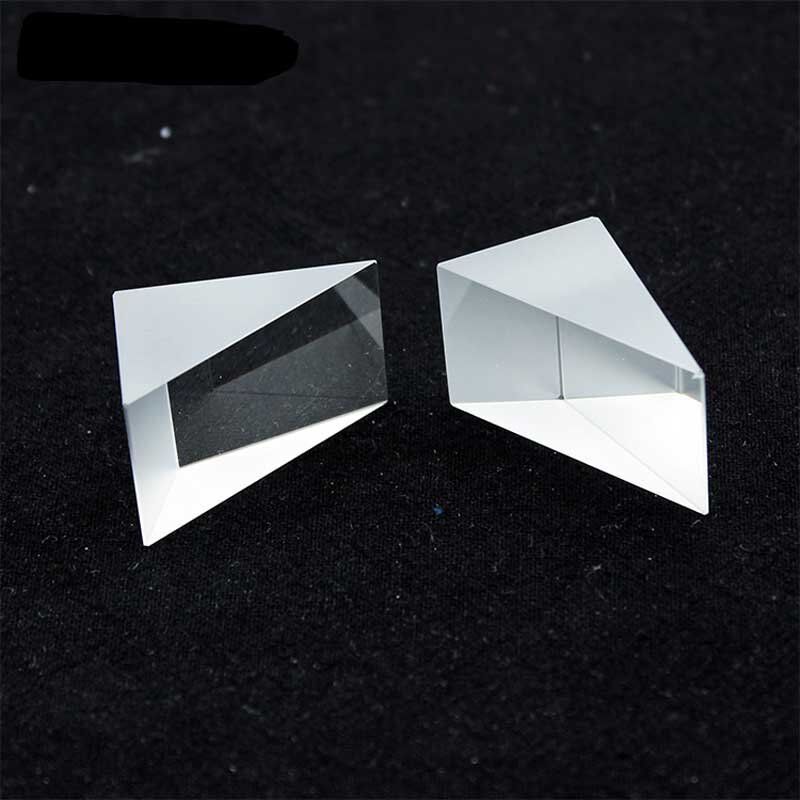

Right-angle prisms are often used to turn the light path or deflect the image created by the optical system by 90°. Depending on the orientation of the prism, the image can be left and right consistent, upside down, and up and down.
The right-angle prism itself has a large contact area and a typical angle of 45° and 90°. Therefore, the right-angle prism is easier to install than a normal mirror and has better stability and strength to mechanical stress. They are the best choice for optics for all types of devices and instruments.
20 years of experience in this field with good reputation and trade records.
