| Price | $0.50 – $10.00 / Piece |
|---|---|
| Tooling Cost | [ Tooling fees may be needed for new design ] |
| Price Range | Depend on the qty and packaging, materials and specification requirements, etc. |
| Payment Term | Payment>500USD, 30% T/T in advance, 70% balance before shipment. Payment<=500USD, 100% in advance. |
| Lead Time | Generally 1-3 days if the goods are in stock. Normally 7-15 days for customed drawing. Negotiable for Busy Season or Large Qty. |
| Packaging | Inner packing – Special protective packing for optical products. Outer packing – Carton, anti-shock material and bubble wrap. |
| MOQ | ≧100pcs for OEM. 5 to 20pcs also welcome for sample order. |
| Material | H-K9L or upon request |
| Angle Tolerance | ±5’ |
| Dimension Tolerance | 0/-0.1 |
| Surface Accuracy | λ/4 |
| Surface Quality | 60/40 (S-D) |
| Clear Aperture | ˃90% |
| Bevelling | 0.2±45° |
| Coating | AR/BBAR |
| Paint | GT-7 or upon request |

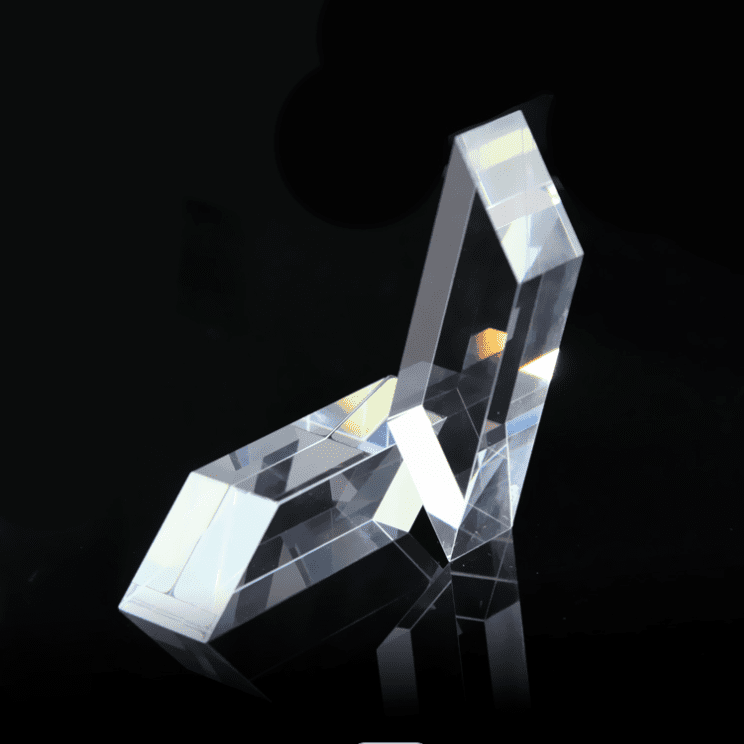

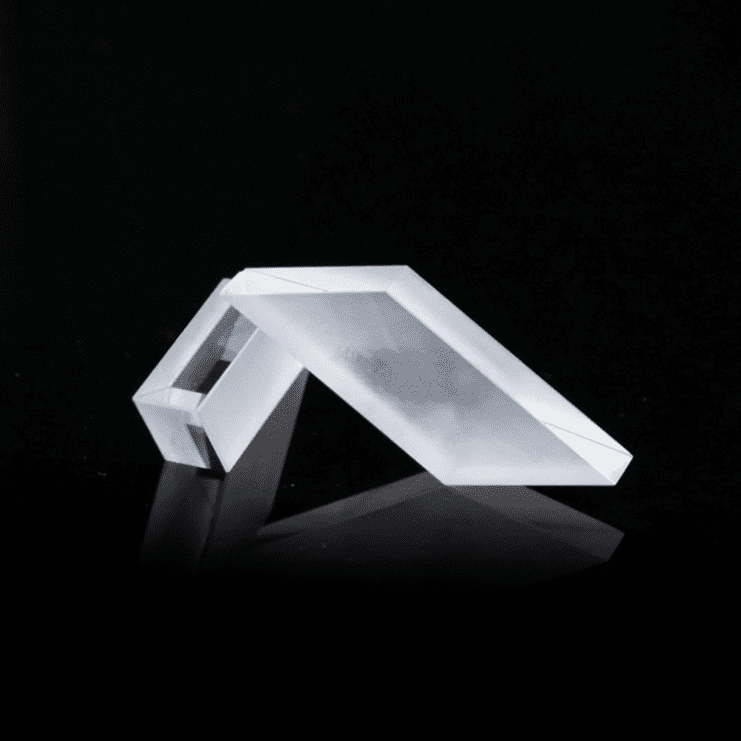

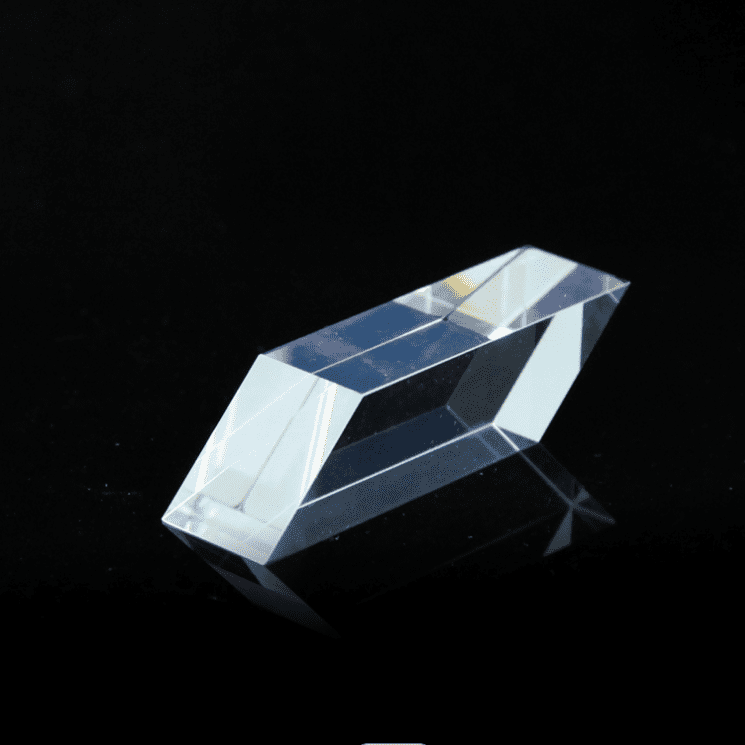

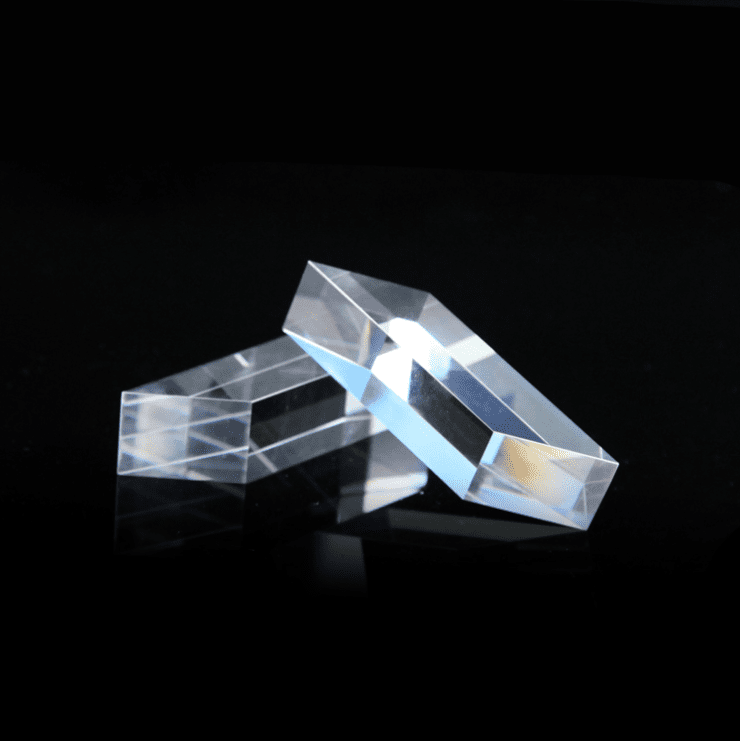

Rhombic Prism is used to display a beam laterally without changing it is direction. The beam undergoes two total reflections in the rhombus prism without changing the direction of propagation. By coating and gluing, beamsplitter prisms can be made, and now polarized beamsplitter prisms can also be made.
20 years of experience in this field with good reputation and trade records.
