| Price | $0.50 – $10.00 / Piece |
|---|---|
| Tooling Cost | [ Tooling fees may be needed for new design ] |
| Price Range | Depend on the qty and packaging, materials and specification requirements, etc. |
| Payment Term | Payment>500USD, 30% T/T in advance, 70% balance before shipment. Payment<=500USD, 100% in advance. |
| Lead Time | Generally 1-3 days if the goods are in stock. Normally 7-15 days for customed drawing. Negotiable for Busy Season or Large Qty. |
| Packaging | Inner packing – Special protective packing for optical products. Outer packing – Carton, anti-shock material and bubble wrap. |
| MOQ | ≧100pcs for OEM. 5 to 20pcs also welcome for sample order. |

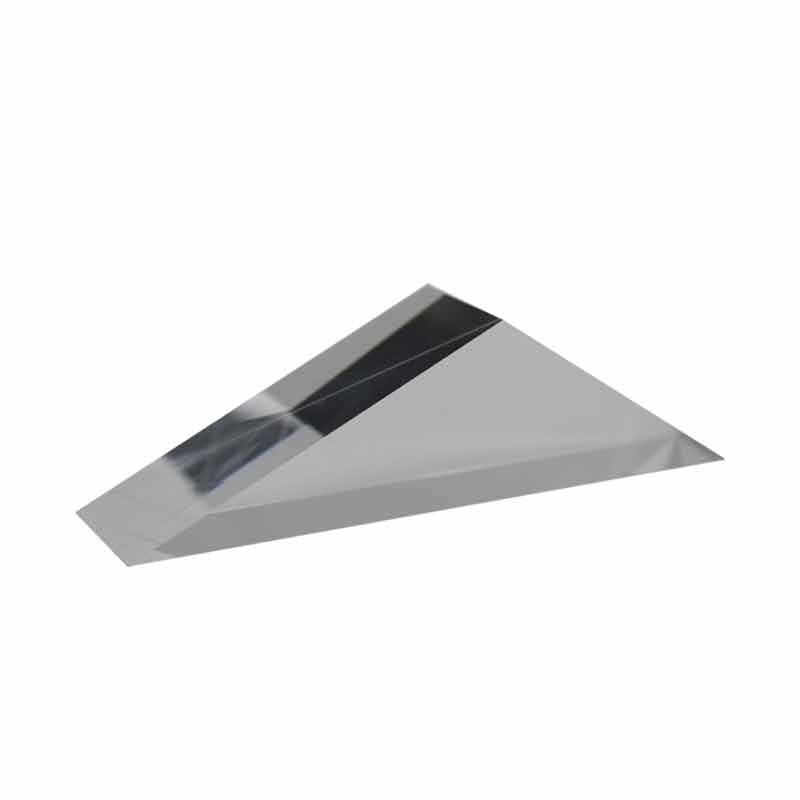

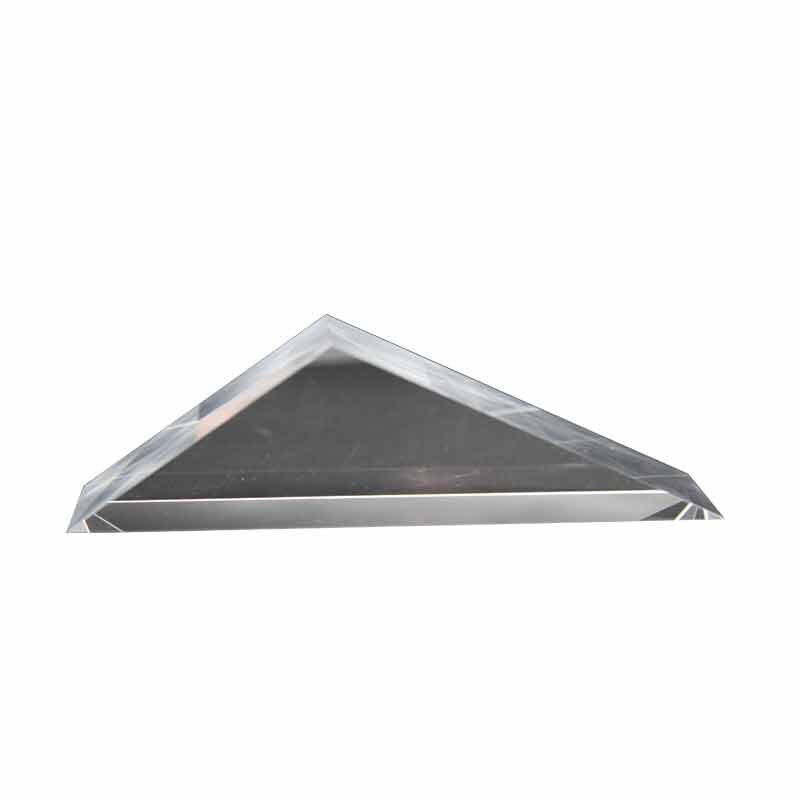

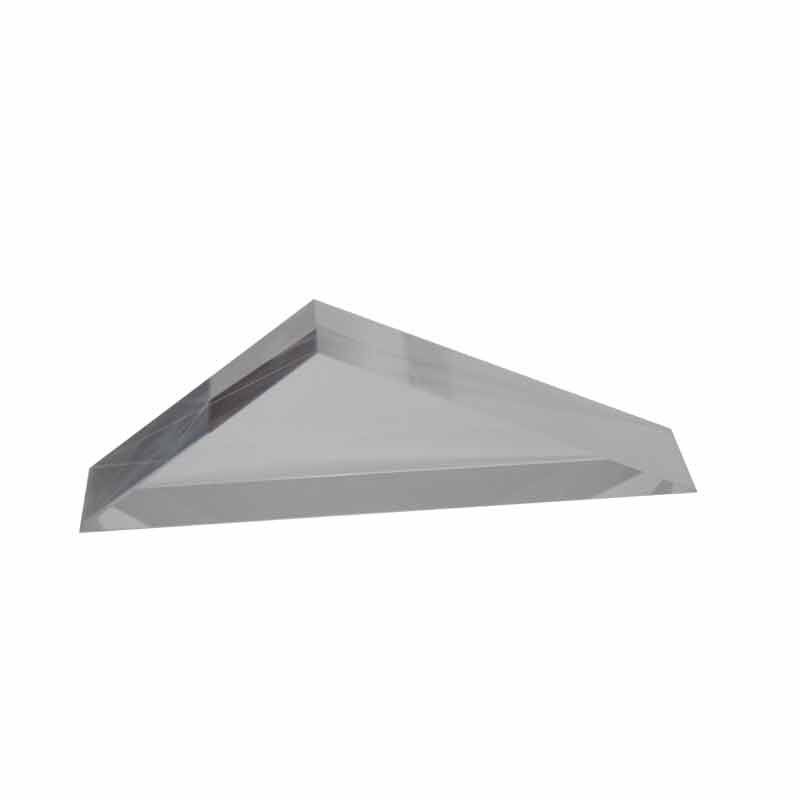

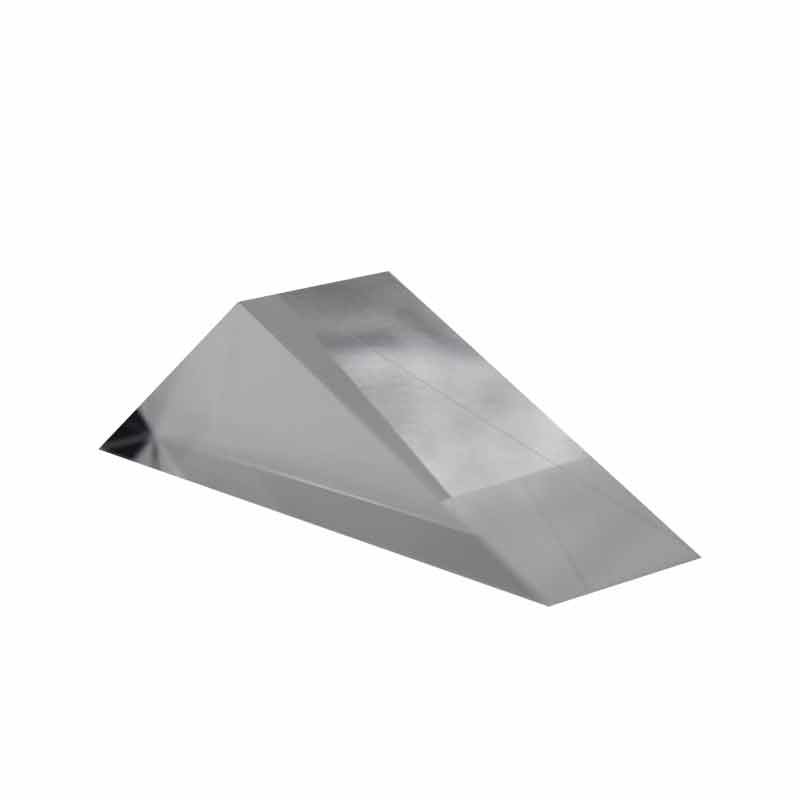

| Name | Reflection prism |
| Size | Customer-made |
| Application | LCD Backlight Unit |
| Description | Internal reflection triangular prism |
| Type | Optical Triangular Prism |
| Coating | Customer’s Demand |
| Material | BK7,K9 Grade A optical glass |
| Dimension Tolerance | +0,-0.1mm |
| Flatness | λ/4 at 632.8 nm |
| Surface Quality | 40-20 scratch and dig |
| Clear Aperture | >90% |
| Bevel | 0.2 mm x 45° |
Triple prisms are generally used to bend image paths or redirect light at 90°. This produces a left handed image and depending on the orientation of the prism, the image may be inverted or reverted. Right angle prisms can also be used in combination for image/beam displacement. TECHSPEC® N-BK7 Right Angle Prisms are made from precision N-BK7 for use in a variety of visible light applications
20 years of experience in this field with good reputation and trade records.
