| Price | $0.50 – $10.00 / Piece |
|---|---|
| Tooling Cost | [ Tooling fees may be needed for new design ] |
| Price Range | Depend on the qty and packaging, materials and specification requirements, etc. |
| Payment Term | Payment>500USD, 30% T/T in advance, 70% balance before shipment. Payment<=500USD, 100% in advance. |
| Lead Time | Generally 1-3 days if the goods are in stock. Normally 7-15 days for customed drawing. Negotiable for Busy Season or Large Qty. |
| Packaging | Inner packing – Special protective packing for optical products. Outer packing – Carton, anti-shock material and bubble wrap. |
| MOQ | ≧100pcs for OEM. 5 to 20pcs also welcome for sample order. |
| Material | BK7 or upon request |
| Angle Tolerance | ±3’ |
| Dimension Tolerance | 0/-0.1mm |
| Surface Accuracy | λ/4@632.8nm |
| Surface Quality | 60/40 (S-D) |
| Clear Aperture | ˃90% |
| Bevelling | 0.2±45° |
| Coating | AR/BBAR |
| Paint | GT-7 or upon request |

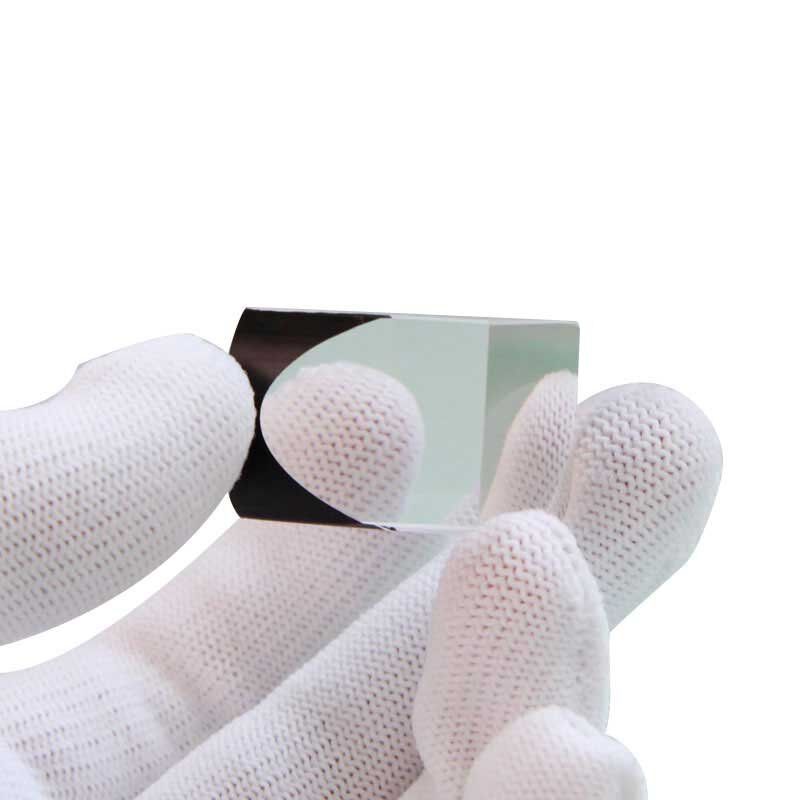

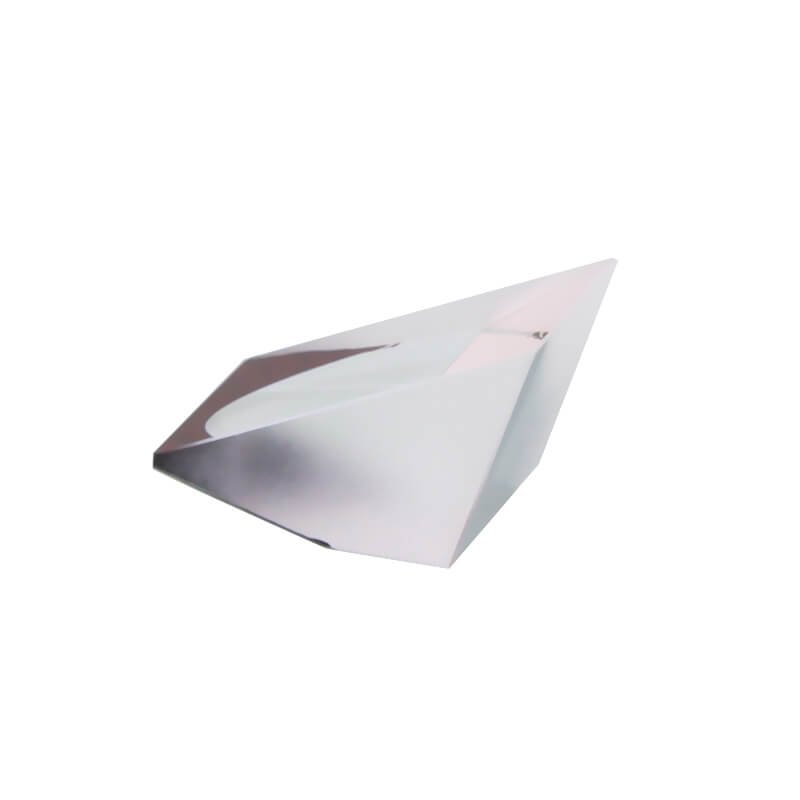

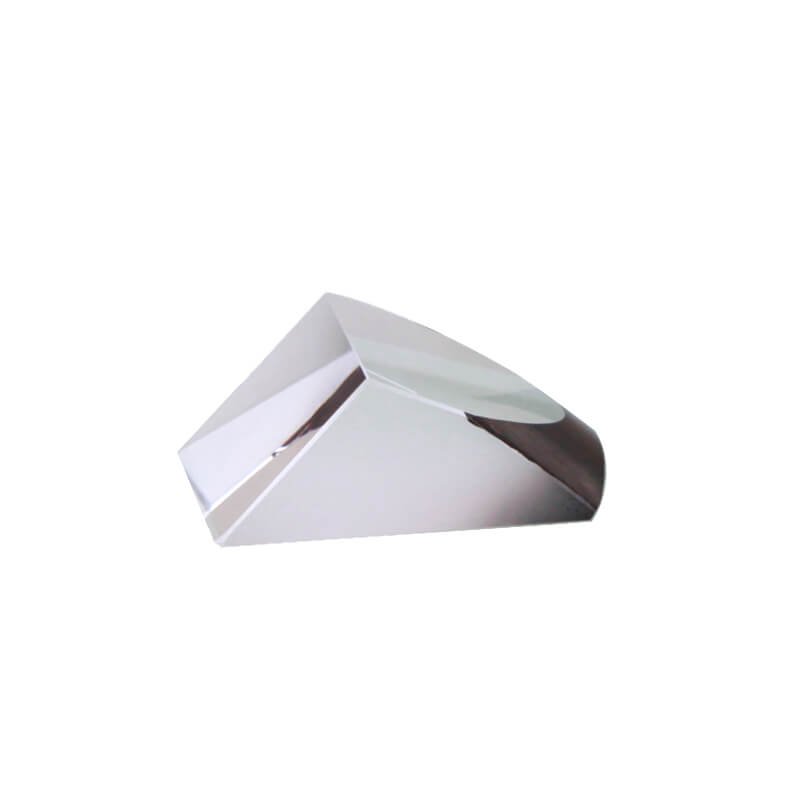

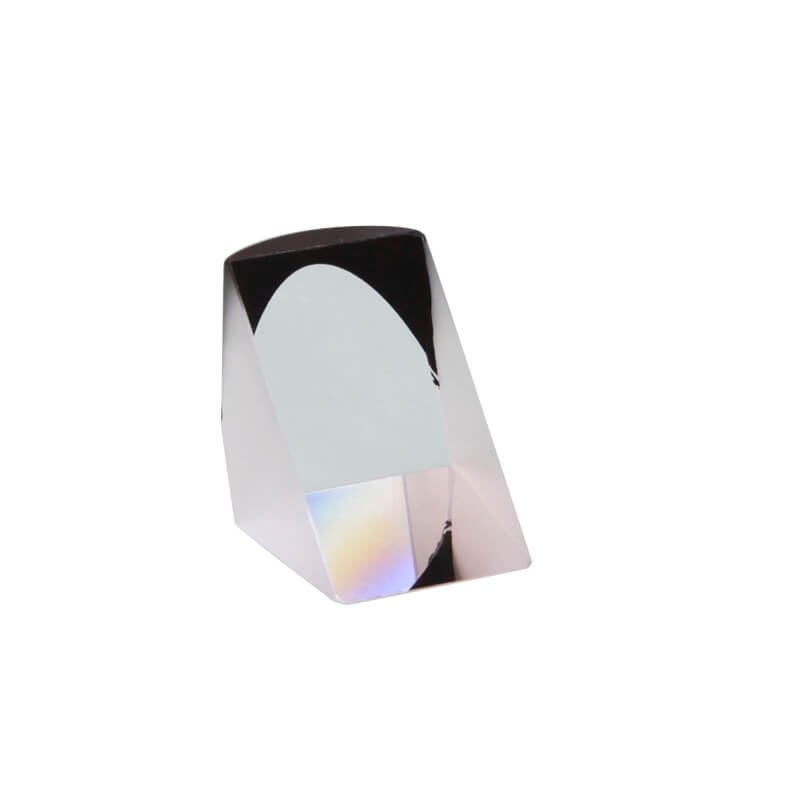

The half-penta prism is formed by halving a pentaprism and is often used in telescope systems.
