| Price | $0.50 – $10.00 / Piece |
|---|---|
| Tooling Cost | [ Tooling fees may be needed for new design ] |
| Price Range | Depend on the qty and packaging, materials and specification requirements, etc. |
| Payment Term | Payment>500USD, 30% T/T in advance, 70% balance before shipment. Payment<=500USD, 100% in advance. |
| Lead Time | Generally 1-3 days if the goods are in stock. Normally 7-15 days for customed drawing. Negotiable for Busy Season or Large Qty. |
| Packaging | Inner packing – Special protective packing for optical products. Outer packing – Carton, anti-shock material and bubble wrap. |
| MOQ | ≧100pcs for OEM. 5 to 20pcs also welcome for sample order. |
| Material | BK7 or upon request |
| Dimension | 2.5×2.5; 3.2×3.2; 12.7×12.7; 25.4×25.4 |
| Surface Accuracy | <λ/4 @λ=632.8nm |
| Surface Quality | 60/40 |
| Clear Aperture | ˃90% |
| beam deviation | <3’ |
| Splitting Ratio | 50/50±5%；T=(Ts+Tp)/2；R=(Rs +Rp)/2 |
| Coating | HR+ AR coating |
| Damage Threshold | >500mJ/cm2, 20ns, 20Hz, @1064nm |

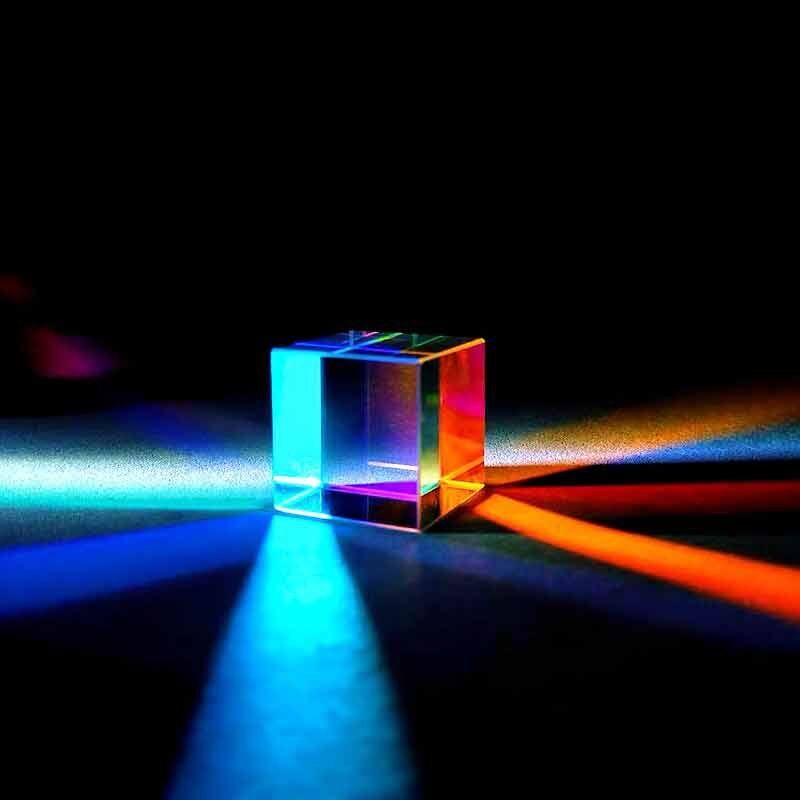

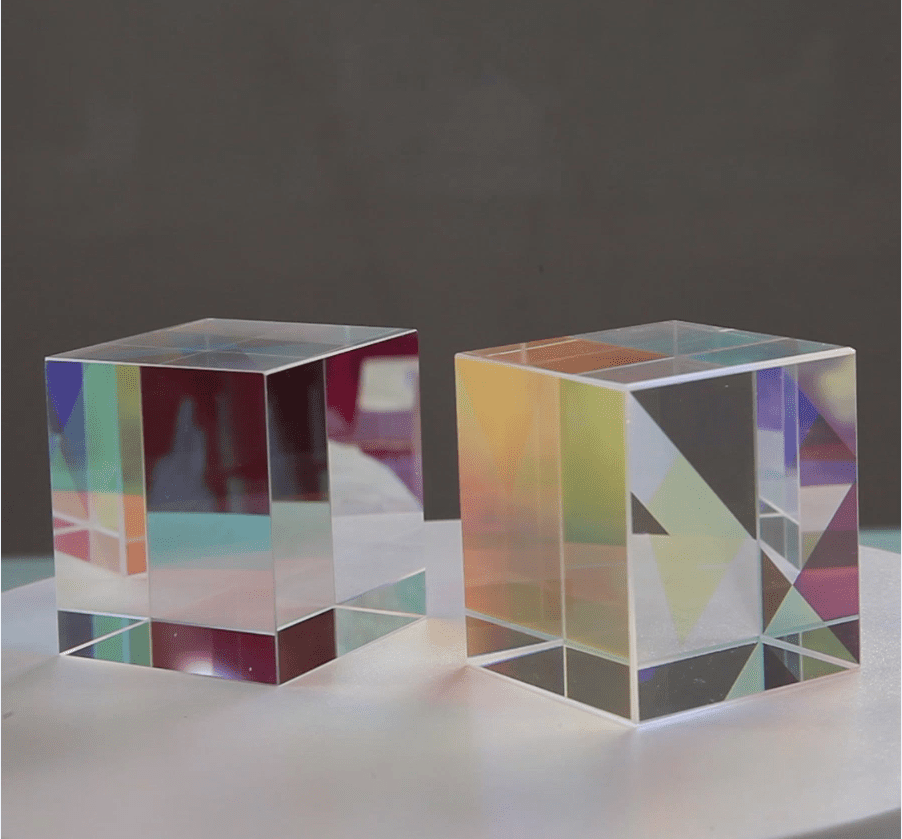

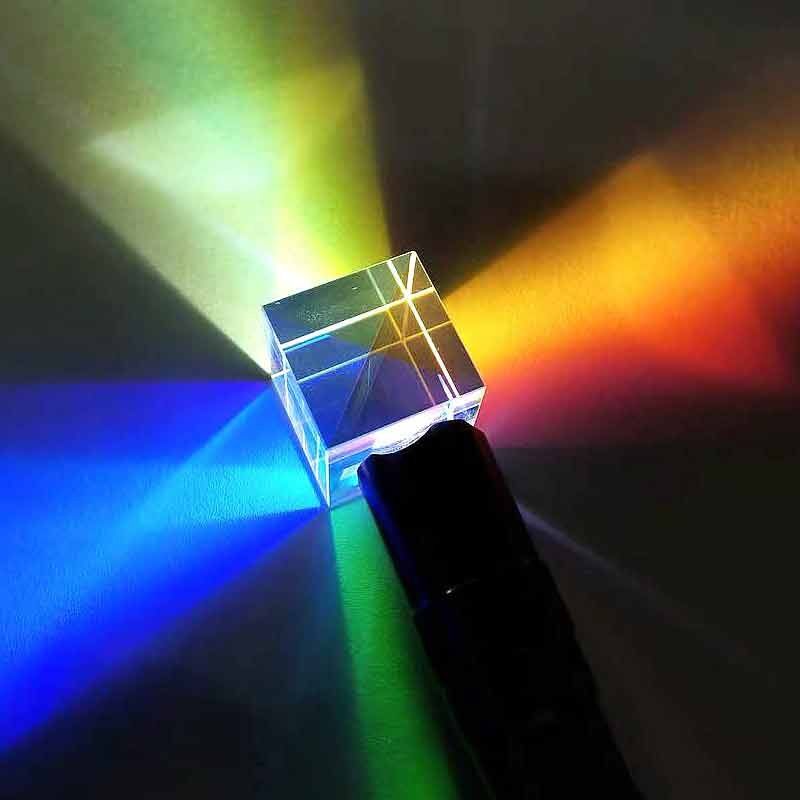

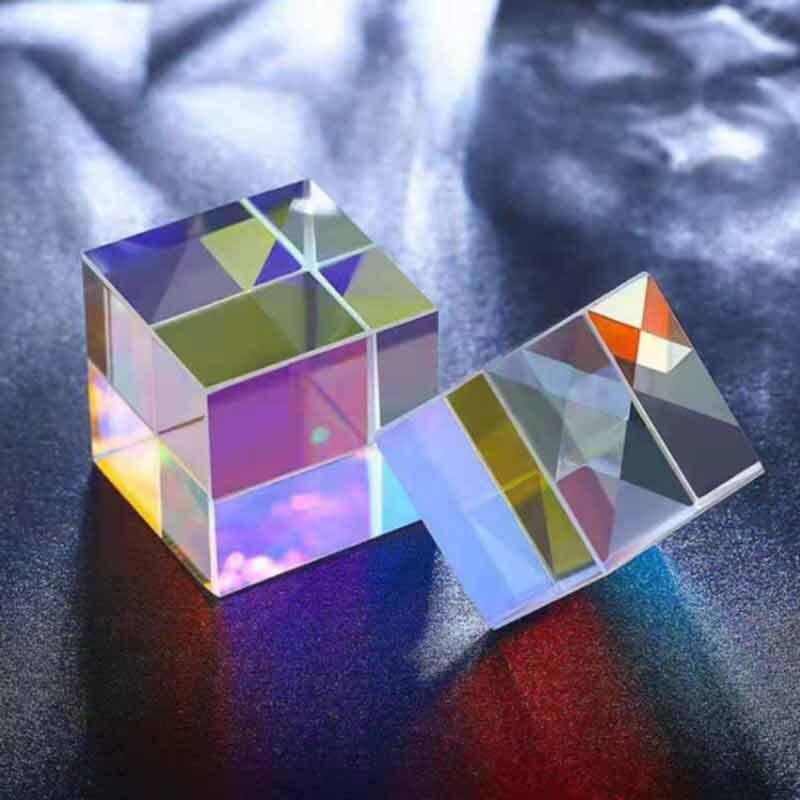

Beamsplitter Cube is a more sophisticated type consisting of two right-angle prisms cemented together at their hypotenuse faces. The cemented face of one prism is coated. Before cementing, a metallic or dielectric layer has the desired reflecting properties, both in the percentage of reflection and the desired color. The absorption loss to the coating is minimal and transmission and reflection approach 50%.
